Need to keep an eye on your Air/Fuel Ratio but your vehicle doesn't have a factory wideband? No problem!

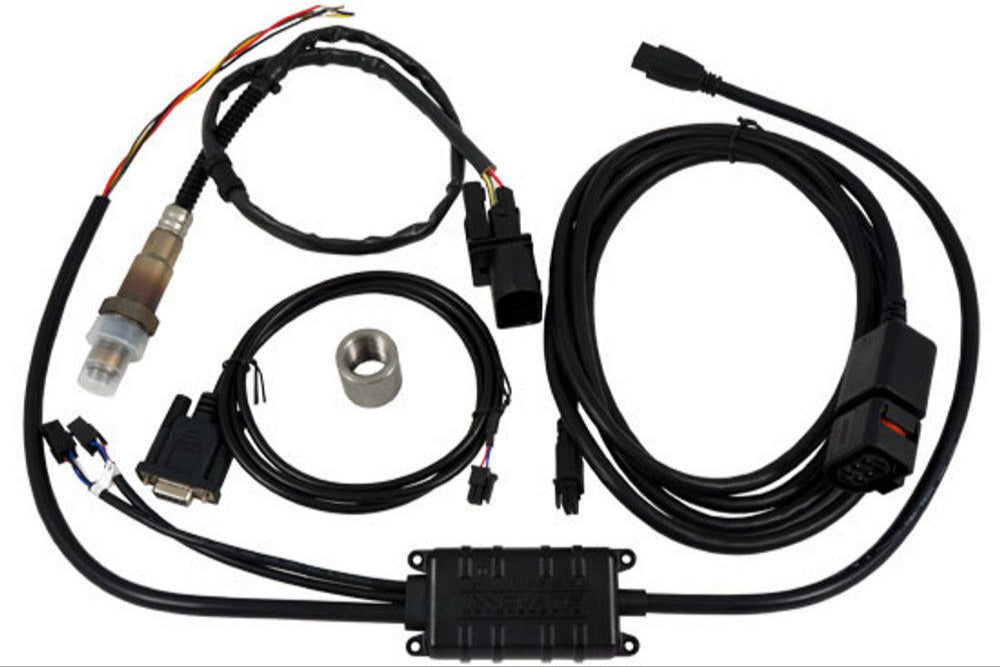

The Innovate Motorsports LC-2 wideband kit comes with everything you need to read AFR right on your Multi-Gauge. This is the easiest way to keep an eye on your AFR without adding clutter to your interior. The LC-2 utilizes 100% digital wideband air/fuel ratio technology. With it's patented award-winning DirectDigital™ signal processing technology, the LC-2 can show exactly how rich or lean an engine is running at any load. The LC-2’s self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition. The LC-2 includes a digital input/output, 2 full-programmable analog outputs, and is ideal for applications such as dynamometers, data acquisition systems, standalone ECUs, and gauges.
KEY FEATURES
- Can be tied directly into P3 Multi-Gauge using analog input
- Uses Bosch LSU 4.9 sensor
- Patented DirectDigital™ Wideband Technology
- Wideband O² Compatible with ALL fuel types
- Ability to calibrate O² sensor for maximum accuracy
- Integrated dual-color status LED (Green/Red)
- *2-Configurable linear 0-5v analog outputs
- 8ft sensor cable
- Positive lock connectors for all connections
- Innovate MTS serial in/out
- Serial connection to your PC
- Real-time display data on screen and/or with powerful LogWorks software
*Two fully programmable linear analog outputs to connect to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs.
DEFAULT OUTPUT CONFIGURATION

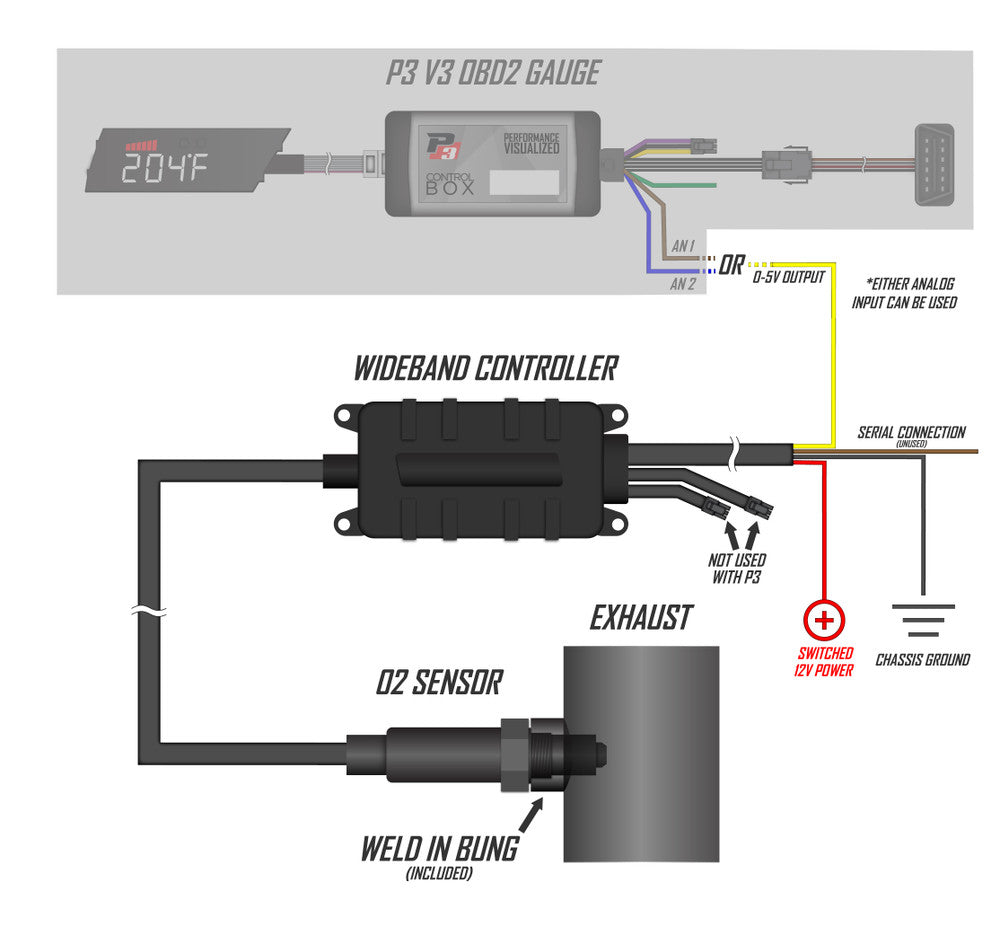

Analog Output 1- (Yellow wire) 0 volt = 7.35 AFR (.5 Lambda) 5 volts = 22.39 AFR (1.52 Lambda)
Analog Output 2- (Brown wire) 1.1 volt = 14 AFR .1 volt = 15 AFR
With the provided LM Programmer software these analog outputs may also be configured by the user.
*Program Cable (Only needed for Datalogging and to change the Fuel Type Setting), Manual, LogWorks Software (Free Download).
SPECIFICATIONS
|
Power
|
|
| Operating Voltage |
9.8V to 16V DC |
| Input Current, O² heater initial warm-up |
2.0A nominal, 3A max |
| Input Current, O² normal operation |
0.8A nominal, 1.1A max |
|
Environmental
|
|
| Operating ambient temperature |
0° to 140° F (−17.78° to 60° C) |
| Storage ambient temperature |
−40° to 185° F (−40° to 85° C) |
| Water resistance |
Splash resistant, non-submersible |
|
Sensors
|
|
| Compatible Types |
Bosch™ LSU4.2 & Bosch™ LSU4.9 |
| Bosch™ Heater Control |
Digital PID via pump-cell impedance |
|
Measurements
|
|
| Lambda |
.5 to 1.52 |
| Air/Fuel Ratio |
7.35 to 22.39 |
|
Accuracy
|
|
| For Lambda |
Accurate to +/- .007 (.1 AFR) |
|
Response Time
|
|
| Free Air to Lambda |
< 100 mS ( < 25 mS typical) |
|
Inputs
|
|
| Serial |
1- Innovate MTS Compatible |
|
Outputs
|
|
| Analog |
2- 0-5VDC, 10 bit resolution, programmable
|
| Serial |
1- Innovate MTS Compatible |
|
Communication
|
|
| Serial |
MTS (Innovate Modular Tuning System) compatible |
